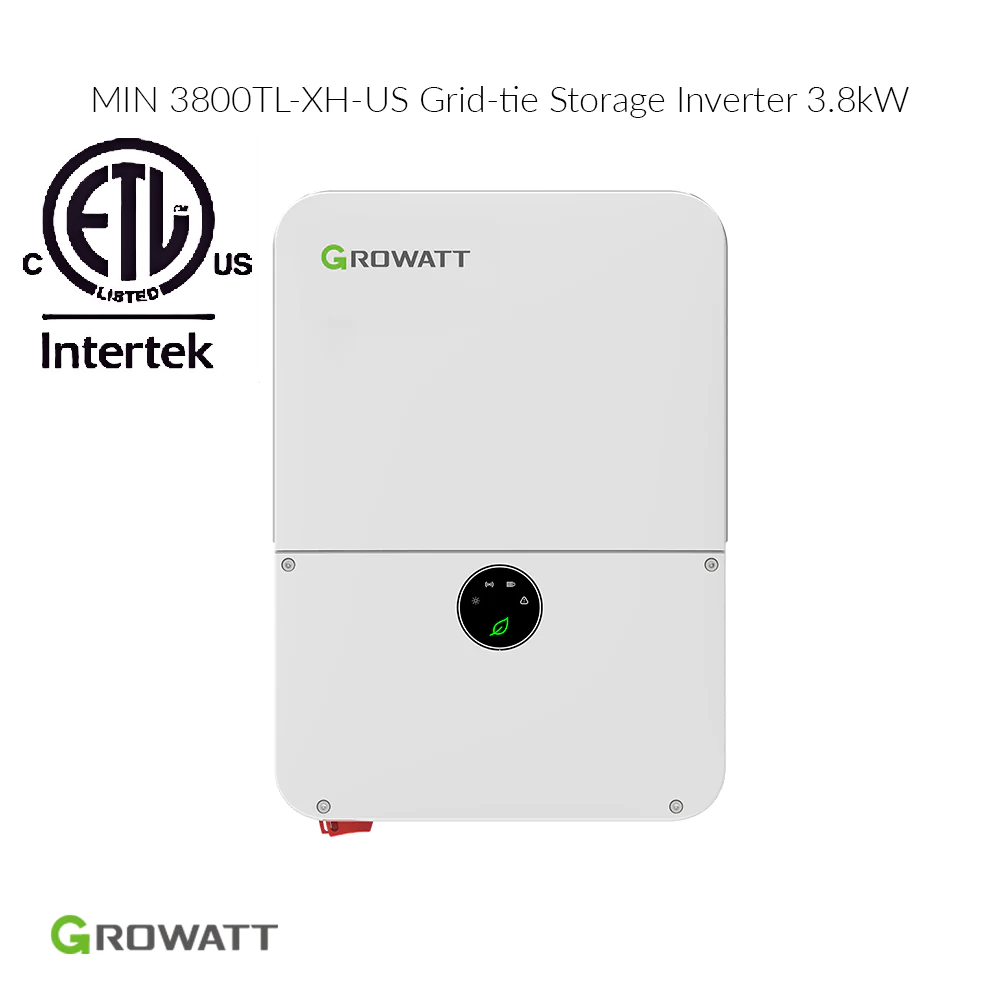

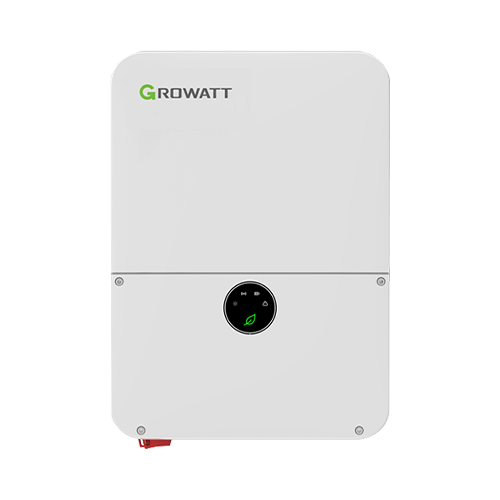

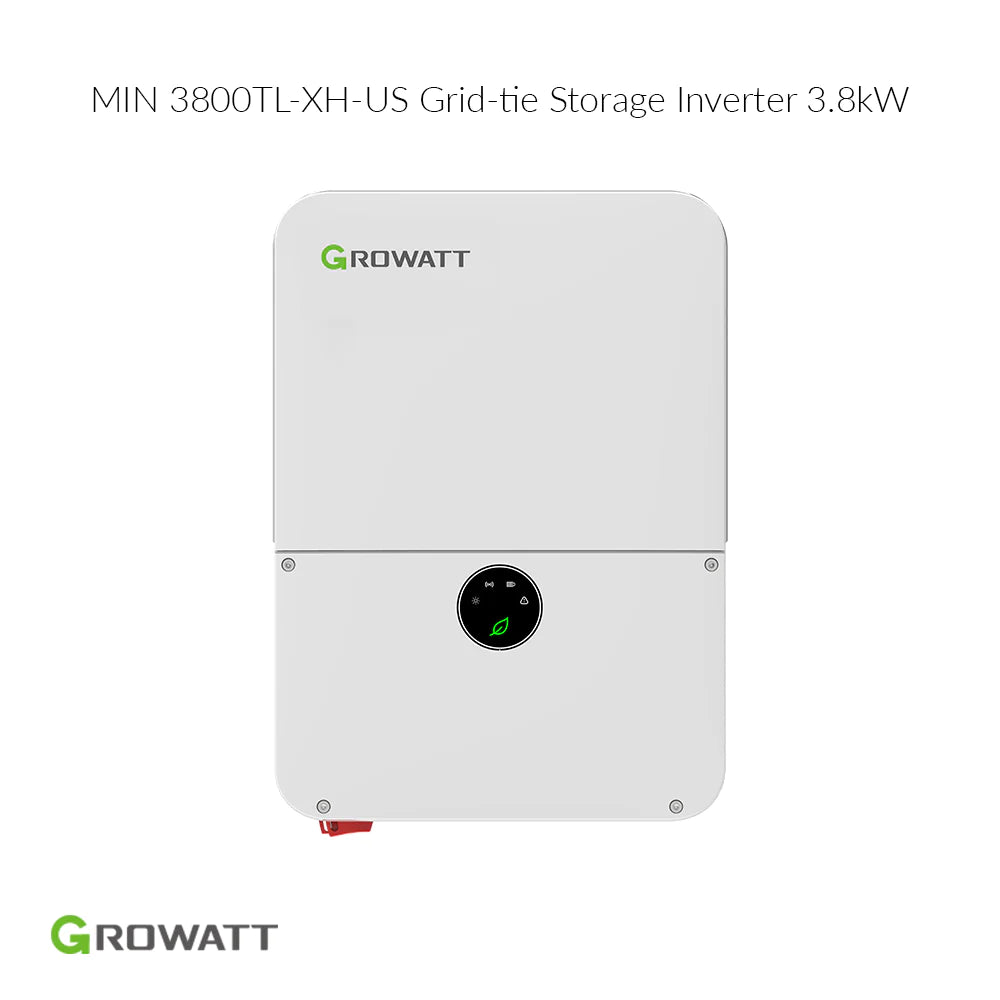

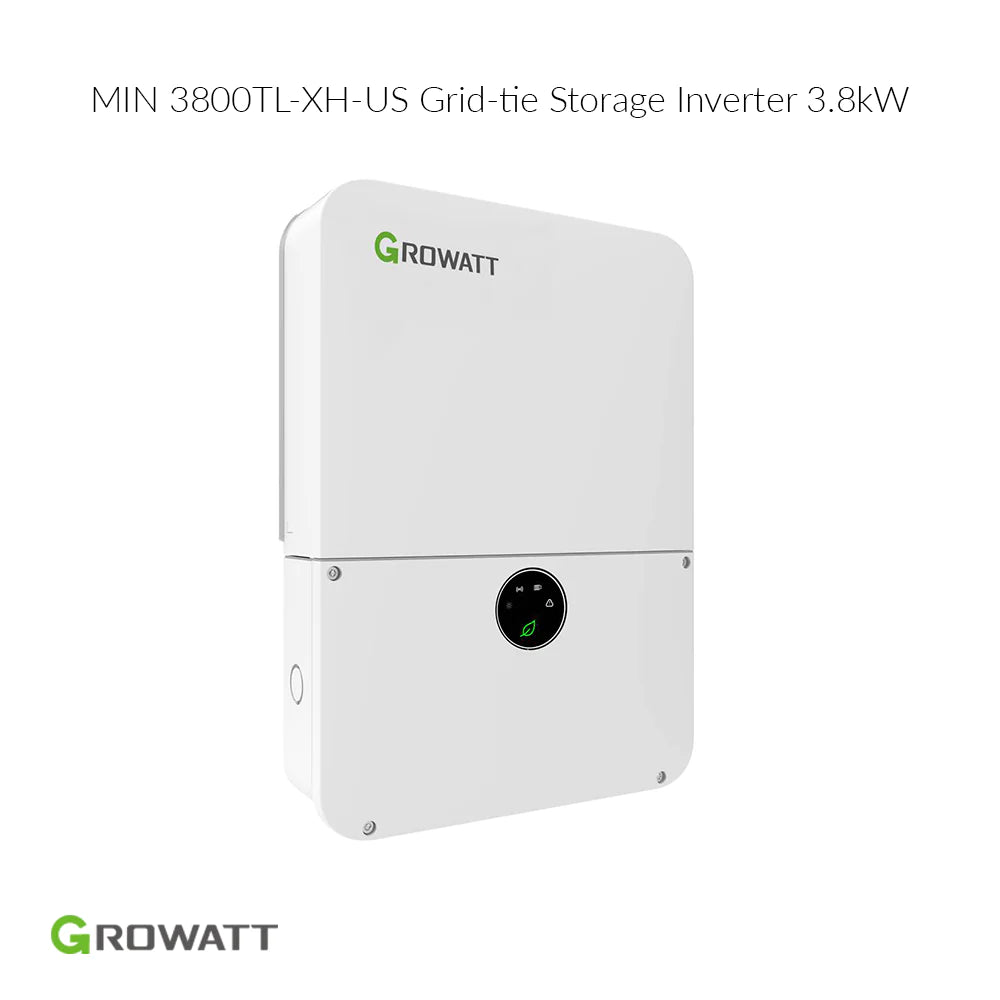

Growatt 3.8kW MIN 3800TL-XH-US Grid-Tie | Battery Storage Solar Inverter

Growatt 3.8kW MIN 3800TL-XH-US Grid-Tie | Battery Storage Solar Inverter

$2,699.99 CAD
$3,699.99 CAD $2,699.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • 98% Peak Efficiency: Maximizes solar conversion.
  • Hybrid Use: For grid-tie and battery systems.
  • Dual MPPTs: Enhances solar harvest.
  • Smart Monitoring: Via WiFi and LAN for system control.
  • Battery-Ready: Suits DC and AC coupled setups.
  • Advanced Safety: With rapid shutdown and AFCI.
  • Energy Modes: Supports self-consumption, zero export, and more.
  • Standards Compliant: Meets IEEE1547, CA Rule 21.
  • Natural Cooling: No need for fans, less maintenance.
  • 10-Year Warranty: With extension options.
Shipping

Free
Local Shipping

Warranty

10-year Hassle Free
Warranty

Support

Lifetime Customer
Support
View full details
  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Growatt 3.8kW MIN 3800TL-XH-US Grid-Tie | Battery Storage Solar Inverter

Embrace the future of home energy with the Growatt 3.8kW MIN 3800TL-XH-US, a smart inverter solution designed for the modern, energy-efficient home. With its compact design and remarkable 98.0% efficiency, this inverter is perfect for battery-ready rooftop solar systems, offering both grid-tie and battery storage capabilities.

  • Smart Connectivity: Features integrated WiFi, LAN communication modules, and Tigo Transmitter, enabling seamless monitoring and management.
  • Flexible Battery Integration: Ready for both DC Coupled and AC coupled systems, providing versatility in storage options.
  • Reliable Backup Power: Supports backup power and dark start operations, ensuring energy availability during outages.
  • Enhanced Safety: Comes with a rapid shutdown solution and AFCI integrated for increased protection.
  • Integrated Energy Management: Includes an Integrated EMS for smart energy modes like self-consumption, zero export, TOU, and off-grid.
  • Compliance: Meets UL1741SA, CA Rule 21 & HECO standards, fitting into regulatory requirements seamlessly.
  • IoT and Cloud Monitoring: Built-in 4G/Wi-Fi Comm. with APP support for easy access to IoT integrated cloud services and monitoring.
  • High Efficiency: Delivers up to 98.0% efficiency, maximizing the conversion of solar energy into usable electricity.
  • Dual MPPT Tracking: Dual MPPT trackers enhance solar harvest, adapting to varied roof orientations.
  • Comprehensive Warranty: Supported by Growatt's extensive warranty, ensuring reliability and customer satisfaction.

Optimize your home’s energy with the Growatt 3.8kW MIN 3800TL-XH-US Inverter, combining cutting-edge technology with smart energy management for unparalleled efficiency and reliability.

  • 1x MIN 3800TL-XH-US Inverter: A high-efficiency inverter supporting DC/AC coupled systems, backup power, and multiple energy modes.
  • 1x User Manual: Instructions for installation, setup, and operation.
  • Optional Communication Module: For remote system monitoring and management.
  • 1x AC Connection Cable: Connects the inverter to AC power.
  • 1x PV Connection Kit: For safe solar panel integration.
  • 1x Battery Cable: Links the inverter to battery storage.
  • Mounting Hardware: Includes brackets and screws for installation.
  • 1x Warranty Documentation: Covers warranty terms and support information.

Technical Specifications


Specification Details
Manufacturer Growatt
Model MIN 3800TL-XH US (WIFI/LAN+TIGO)
Rated Power Output [W] 3800
Length [mm (in)] 569 mm (22.41 in)
Width [mm (in)] 400 mm (15.75 in)
Depth [mm (in)] 170.5 mm (6.98 in)
Weight [kg (lb)] 17.4 kg (38.36 lb)
Wormanship Warranty Period [Years] 10
Inverter Type Hybrid inverter
Maximum/Peak Efficiency [%] 98
CEC weighted efficiency @ 240V [%] 97
Transformer / Transformerless Transformerless
DC Power Rating [W] 7600
Nom. DC Voltage [V] 360
Max. Input Power [W] 7600
Max. Input Voltage [V] 600
Min. DC voltage / start voltage [V] 50
Number of DC String Inputs (Inlets) 4
Number of MPP Trackers 2
Max. Input Power per MPPT [W] 3800
Max. Input Voltage per MPPT [V] 600
Max. Input Current per MPPT [A] 16.9
Voltage Lower Limit for MPP Range [V] 50
Voltage Upper Limit for MPP Range [V] 550
DC Disconnection Type Integrated
Reverse-Polarity Protection Yes
Ground-Fault Isolation Detection Yes
AC Power Rating [W] 3800
Nominal AC Power [W] 3800
Max. AC Power [W] 3800
AC voltage range [V] 208V: 183-229V / 240V: 211-264V
AC grid frequency [Hz] 60
Max. output current [A] 16
Nominal AC Voltage [V] 208/240
Maximum AC Voltage Range [V] 264
Nominal AC Frequency [Hz], range [Hz-Hz] 60
AC Connection Type L1/L2/N/PE
AC Current Distortion [THD%] <3%
AC Input Wire Gauge Range [AWG] 6 AWG - 8 AWG
Sleep (Night) Consumption [W] <5W
NEMA Enclosure Rating NEMA4X (IP65)
Cooling Method Natural Convection
Ambient Temperature Range [°C(°F)] -25°C to +60°C (-13°F to +140°F)
Operating Humidity [%] 0~95%
Operating Altitude [ft/m] 9843ft (3000m)
Display OLED
Communication RS485 included, WiFi/4G Optional
Basic Warranty [Years] 10
Warranty Extension Options [Years] 15,20
Compliances IEEE1547, CA Rule21, Rule14 (HECO Compliant), FCC Part15 Class B, UL1741, UL1741SA,CSA C22.2, UL1699B, UL1741 CRD
AC grid range [Hz] 45-65
Max. recommended PV power (@ module STC) 7600


The Growatt 3.8kW MIN 3800TL-XH-US boasts a maximum efficiency of 98% and a CEC weighted efficiency of 97% at 240V, making it one of the most efficient inverters in its class.

Yes, this inverter can operate in a grid-tie configuration without batteries, allowing for flexible energy solutions that can adapt to your needs.

The MIN 3800TL-XH-US is equipped with 2 MPPTs, each capable of managing a maximum input power of 3800W, optimizing solar energy harvest from multiple roof orientations.

This inverter supports RS485 communication as included, with options for WiFi/4G for remote monitoring and management of your solar system.

Yes, it complies with major standards including IEEE1547, CA Rule 21, HECO Rule 14, FCC Part 15 Class B, UL1741, UL1741SA, CSA C22.2, and UL1699B, ensuring its suitability for various installations.

The inverter comes with a basic warranty of 10 years, with options for warranty extension up to 15 or 20 years, offering long-term reliability and peace of mind.

Yes, it is designed for flexibility, supporting both DC coupled and AC coupled systems for comprehensive energy management and storage solutions.

The MIN 3800TL-XH-US utilizes natural convection for cooling, ensuring efficient operation without the need for external cooling mechanisms.

The maximum input voltage for this inverter is 600V, allowing for a wide range of PV module configurations.

Yes, it features integrated DC disconnection, reverse-polarity protection, and ground-fault isolation detection, ensuring safe and reliable operation.


Download Product Manual (PDF)
